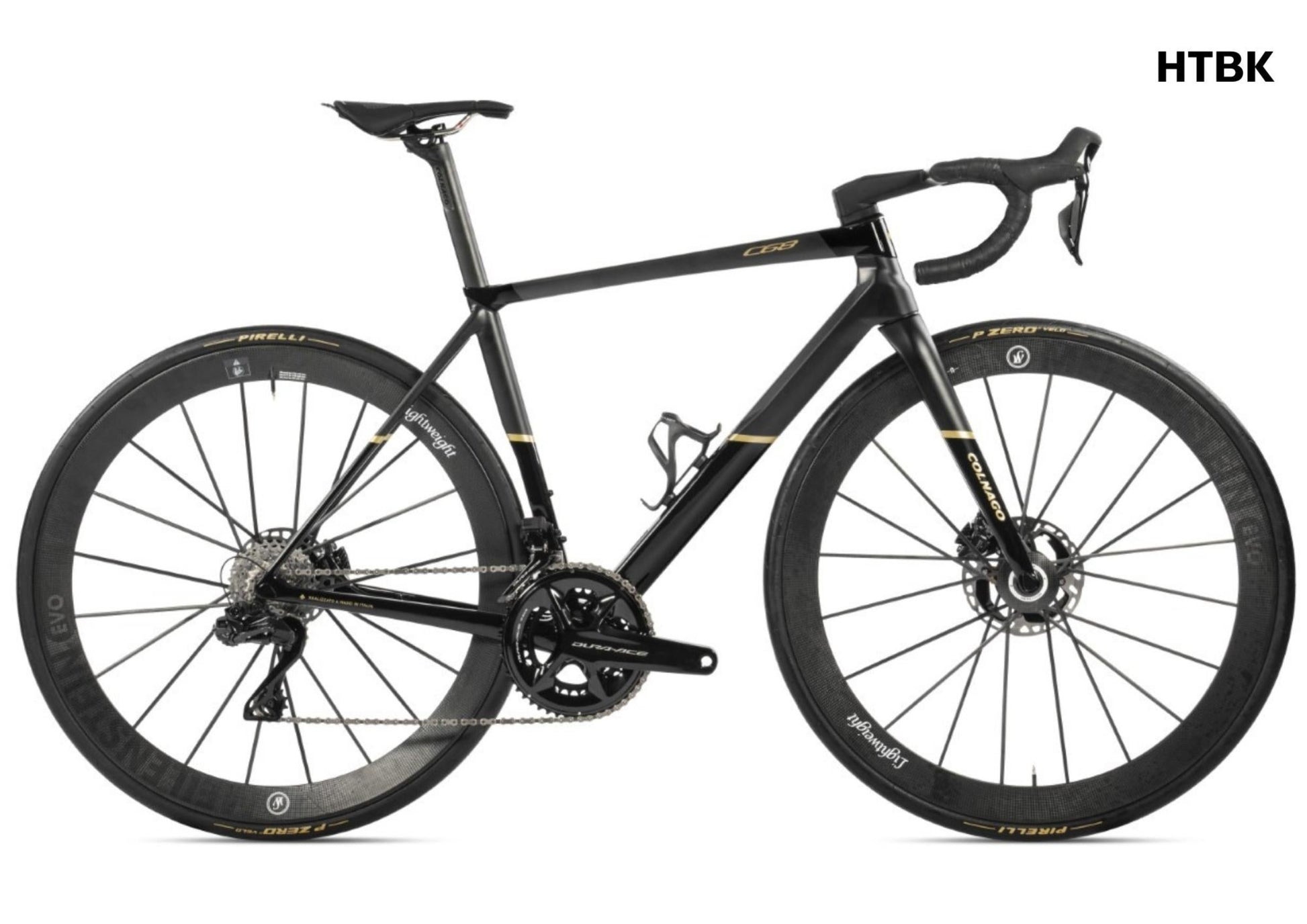

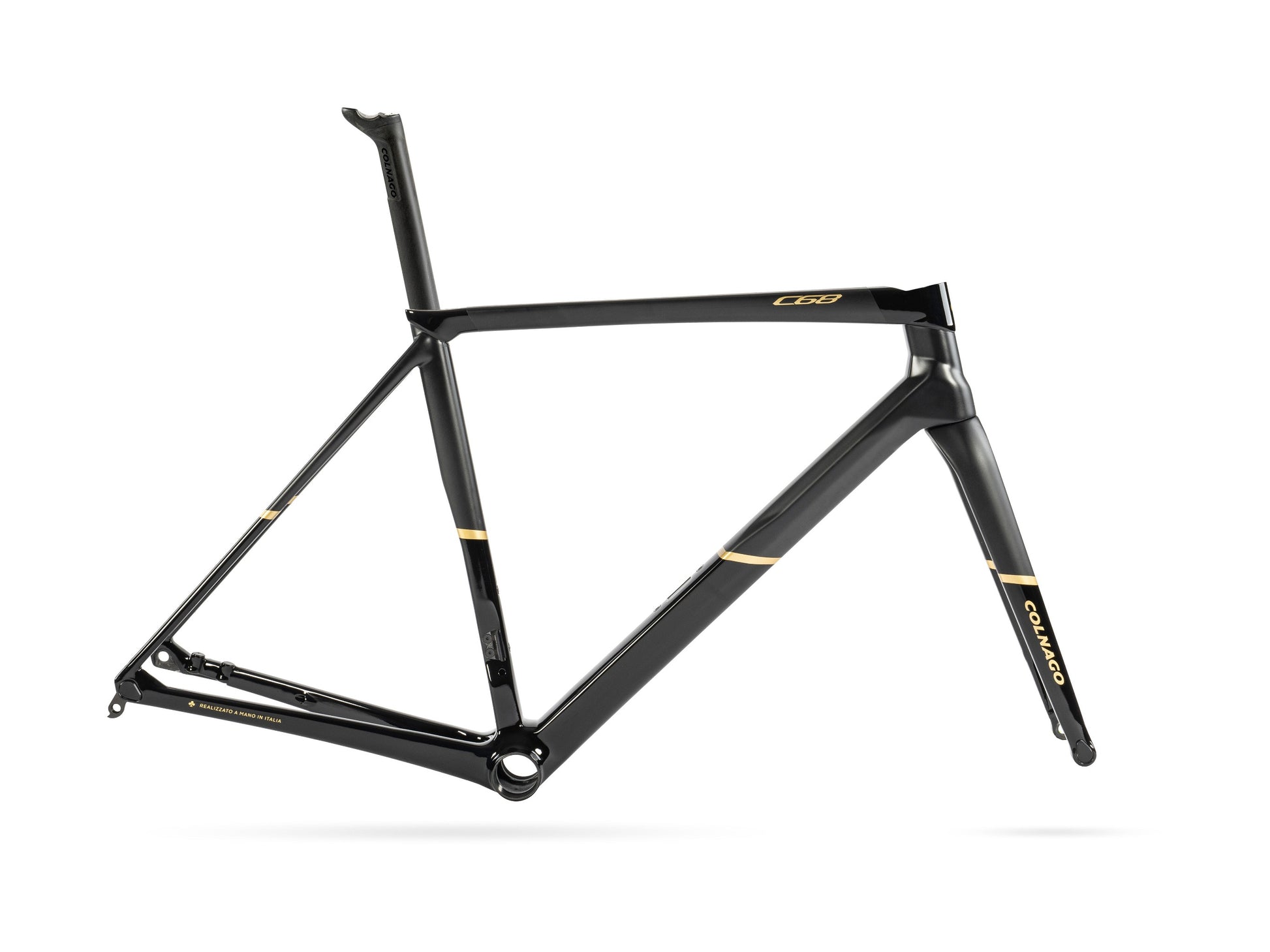

Combining cutting-edge construction techniques with traditional Colnago flair, the Ti Disc frameset resides at the pinnacle of road cycling technology. This special edition features 3D printed titanium lugs and a sleek, black and gold colourway that issues this ride with a superior aesthetic. As part of the model C series, this frame focuses on ride quality, as opposed to the uncompromising, race-focused model V series. Handmade in Italy, the frame is finished to the highest standard, intended for those who love cycling and prioritise form.
An evolution of the much-lauded C64, this model takes that winning formula and builds upon it. The frame weight has dropped whilst the rigidity has increased, particularly around the headtube, delivering unparalleled handling precision. The modular structure allows for high-quality lamination and meticulous control over the construction process. Lighter and stiffer, the fork has seen a design change, and the front derailleur mount is removable for riders seeking enhanced integration with a 1x drivetrain.
The number of parts that complete the frame is the same as with the previous C series (C64).
Even though from an aesthetics point of view, its lines and styling may be more similar to that of a frame manufactured in one piece.
There are still some visible joints on the C68 to trace back to our root, while other joints would appear invisible due to the new streamlined design
The frame weight for a raw size 485 is around 925gr, just 10gr more (935gr) for the titanium version.
| Size | 42 | 45.5 | 48.5 | 51 | 53 | 55 | 57 |
| Seat Tube (ctr-top) | 420 | 455 | 485 | 510 | 530 | 550 | 570 |
| Seat Tube (ctr-ctr) | - | - | - | - | - | - | - |
| Effective Top Tube | 504 | 517 | 535 | 550 | 567 | 586 | 599 |
| Actual Top Tube | - | - | - | - | - | - | - |
| Seat Angle (°) | 75.5° | 75.0° | 74.5° | 74.0° | 73.50° | 73.0° | 73.0° |
| Head Tube Angle (°) | 70.6° | 71.0° | 71.5° | 71.8° | 72.5° | 72.9° | 73.1° |
| Head Tube Length | 103 | 114 | 130 | 148 | 164 | 181 | 200 |
| Fork Rake | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
| Chainstay Length | 408 | 408 | 408 | 410 | 414 | 414 | 414 |
| Wheelbase | - | - | - | - | - | - | - |
| Stack | 510 | 522 | 539 | 557 | 575 | 593 | 612 |
| Reach | 370 | 375 | 383 | 388 | 395 | 403 | 410 |
All measurements in mm unless otherwise stated.
