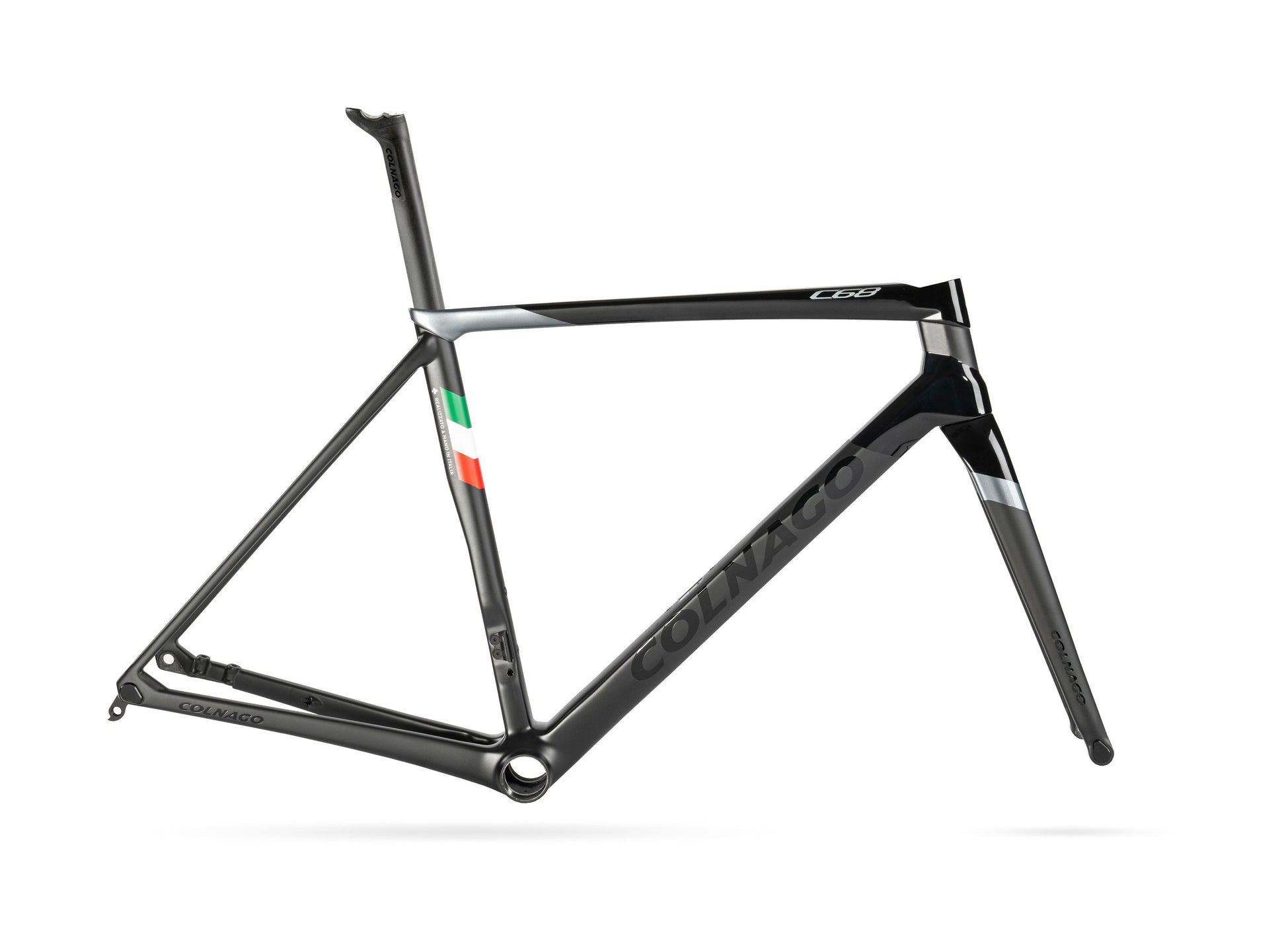

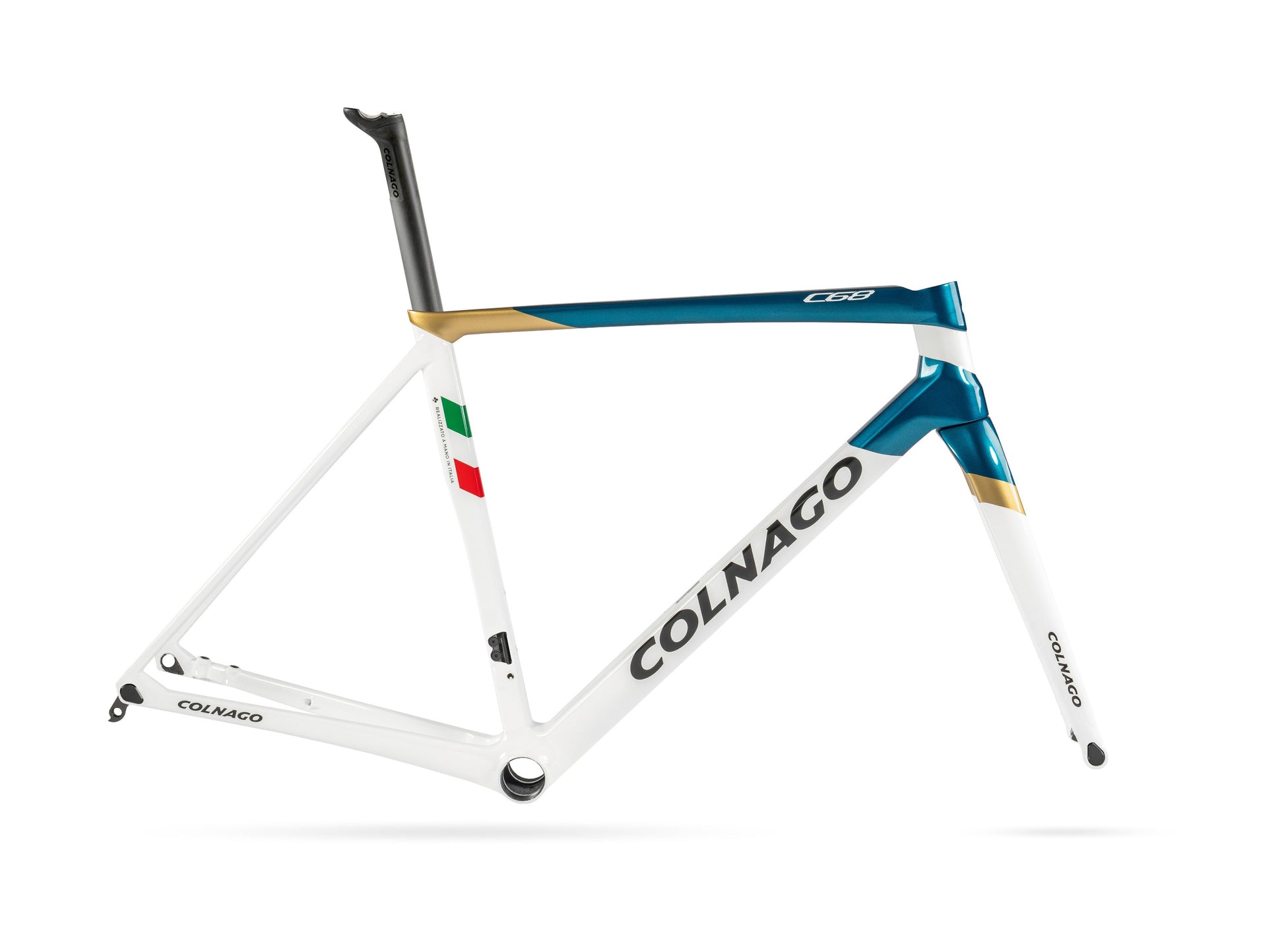

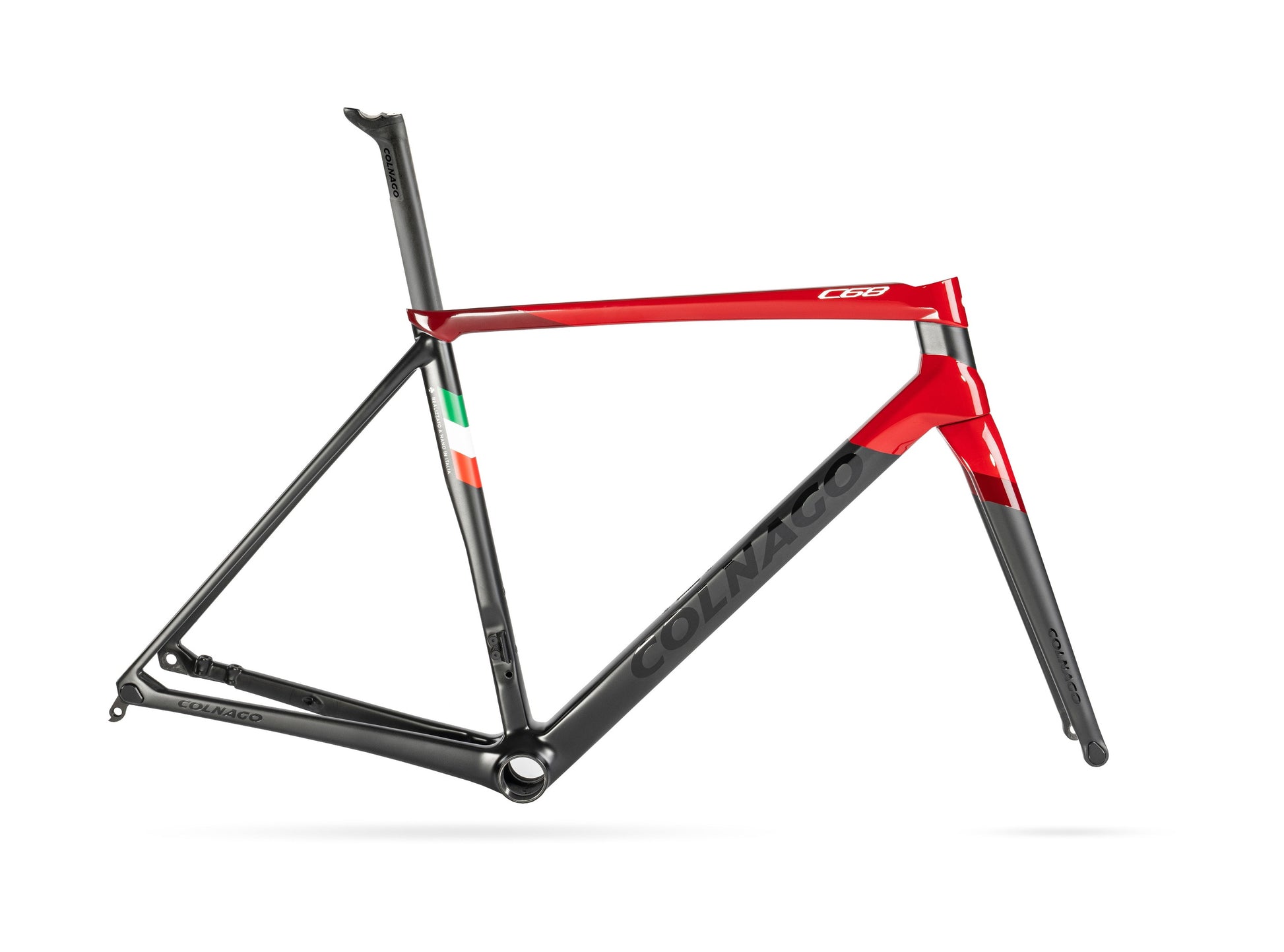

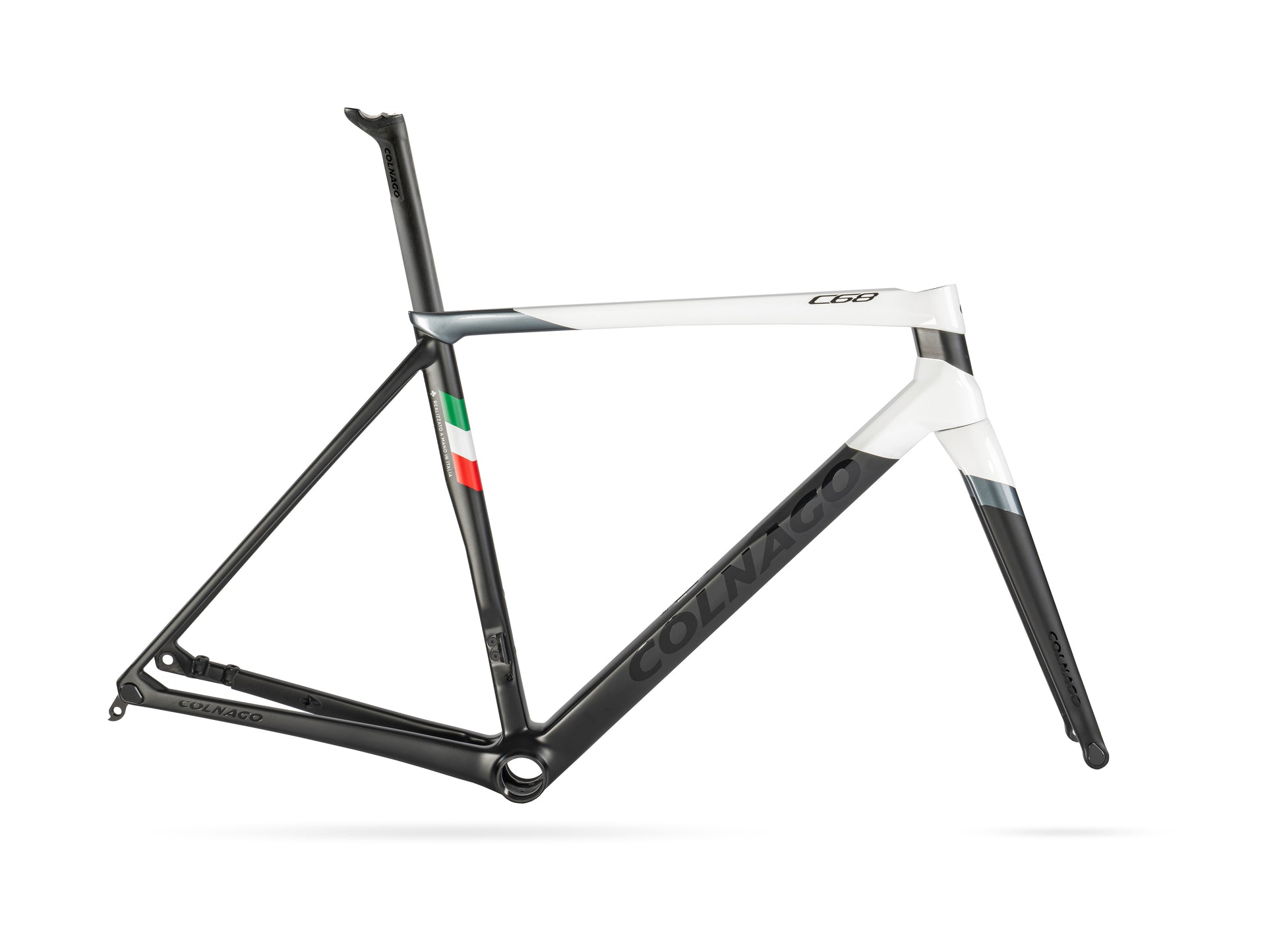

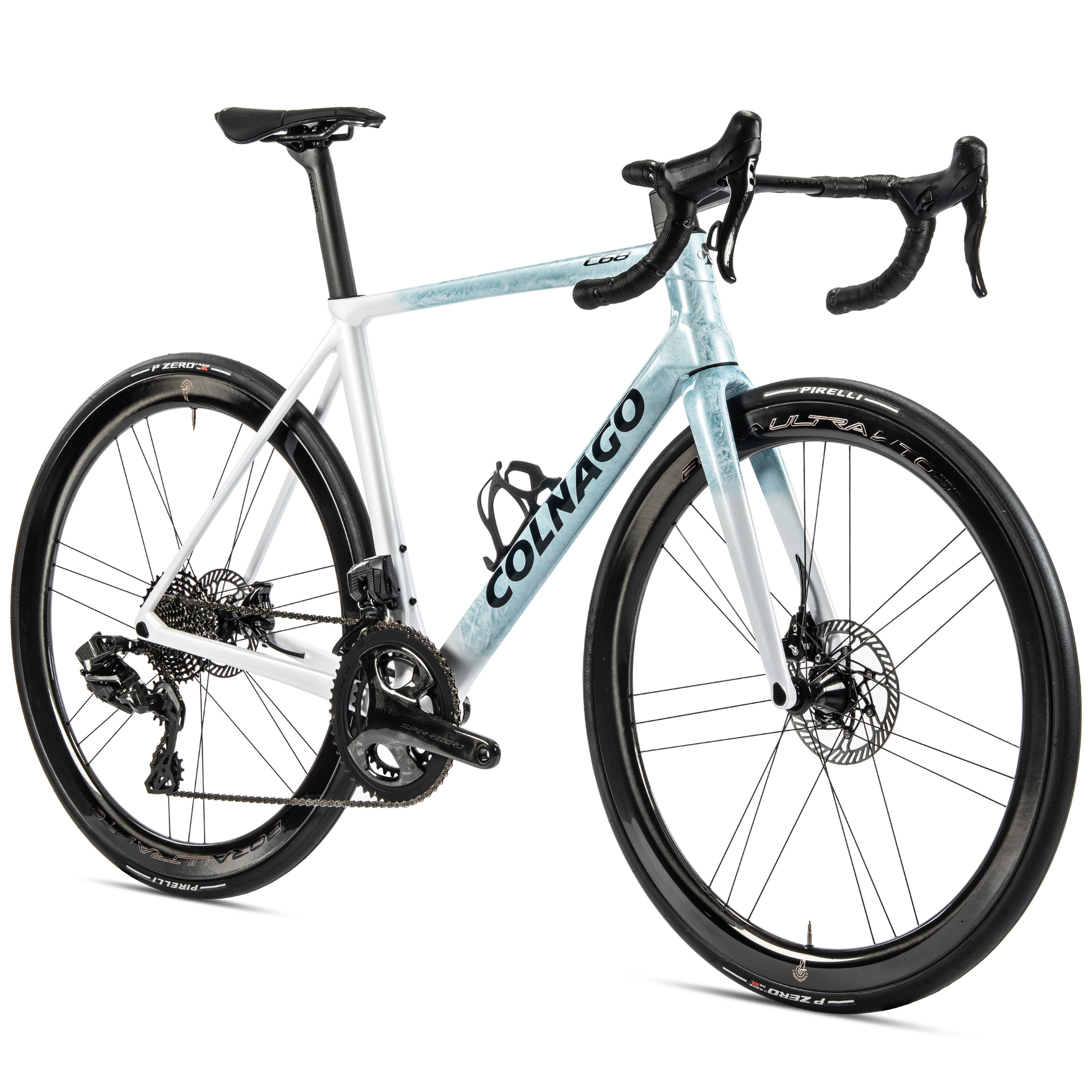

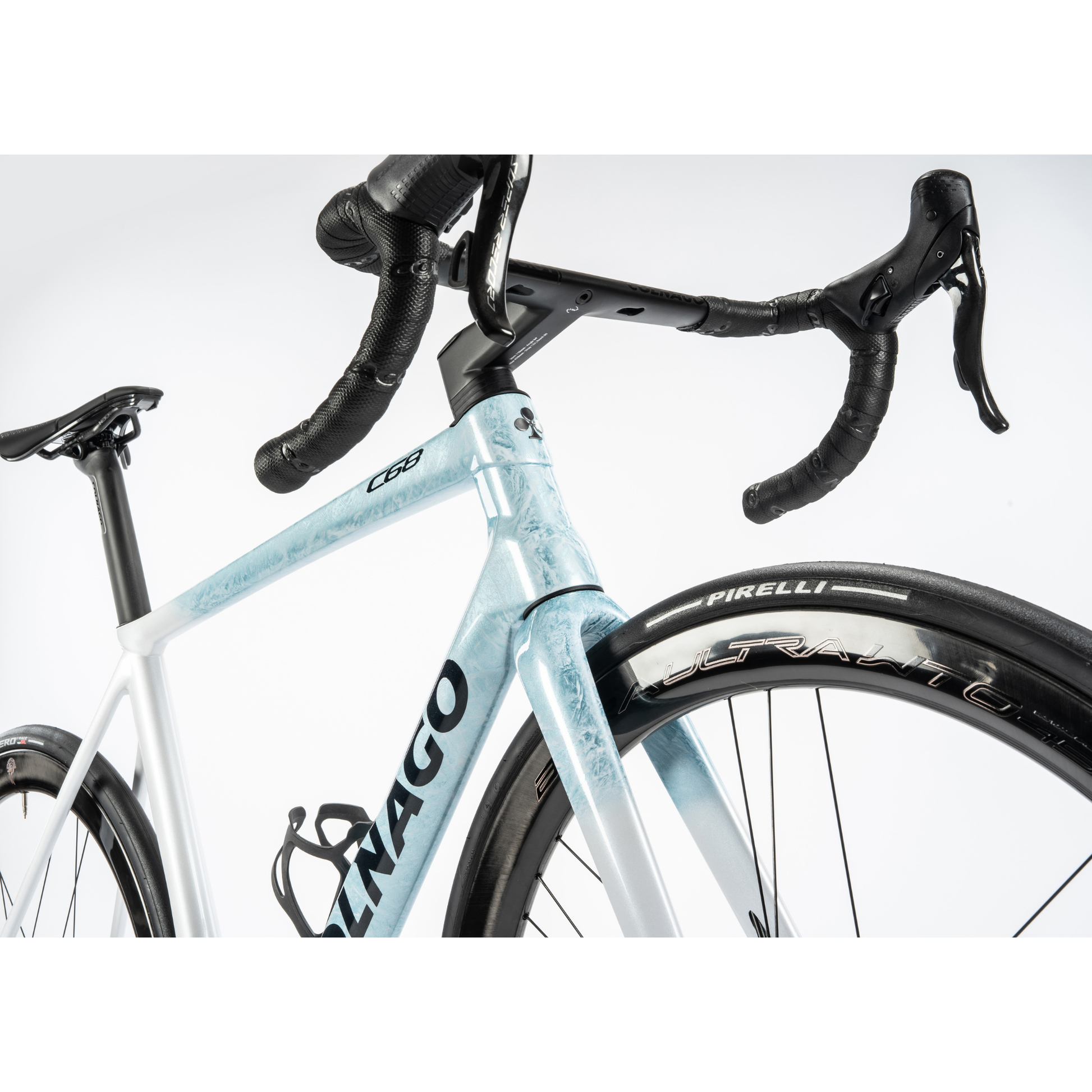

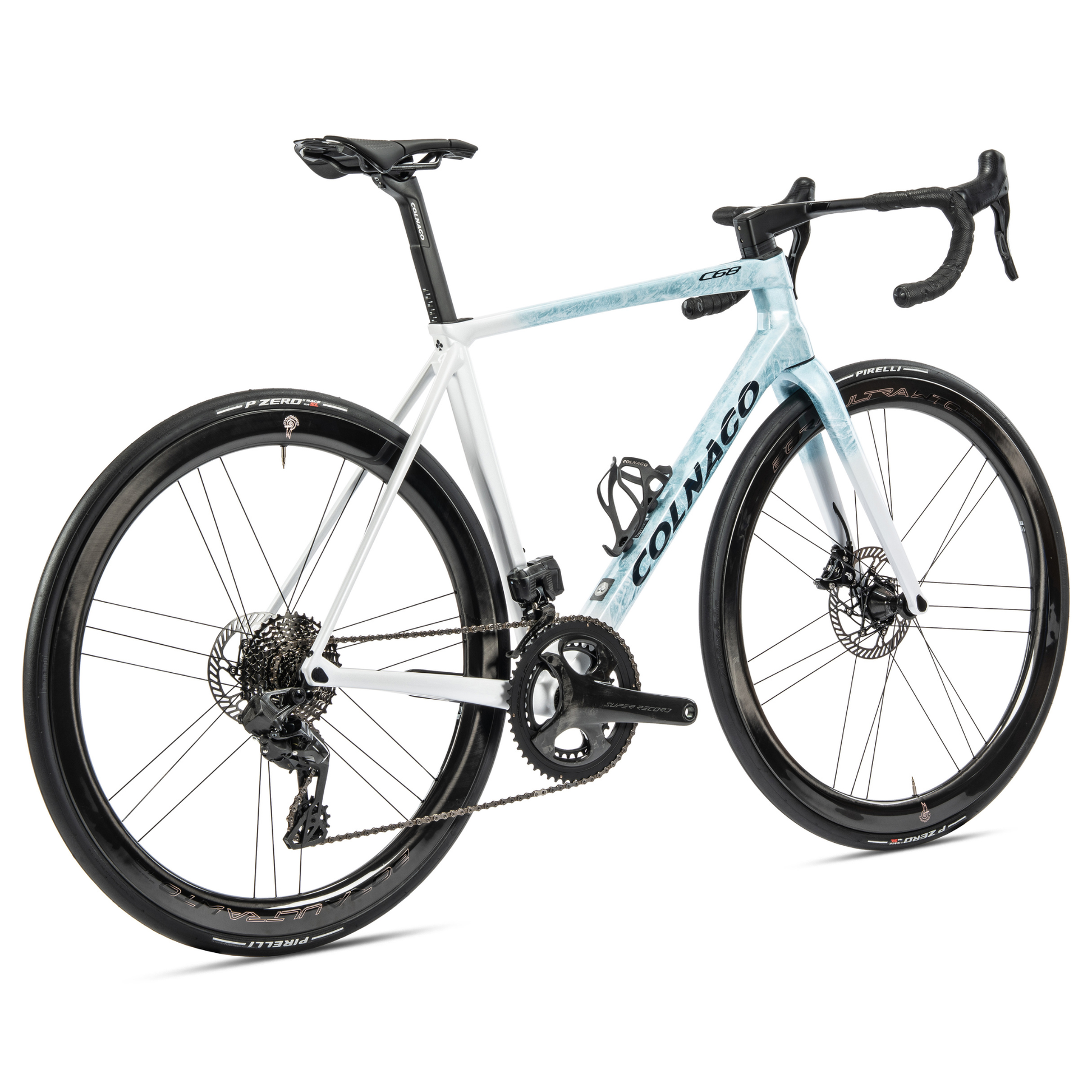

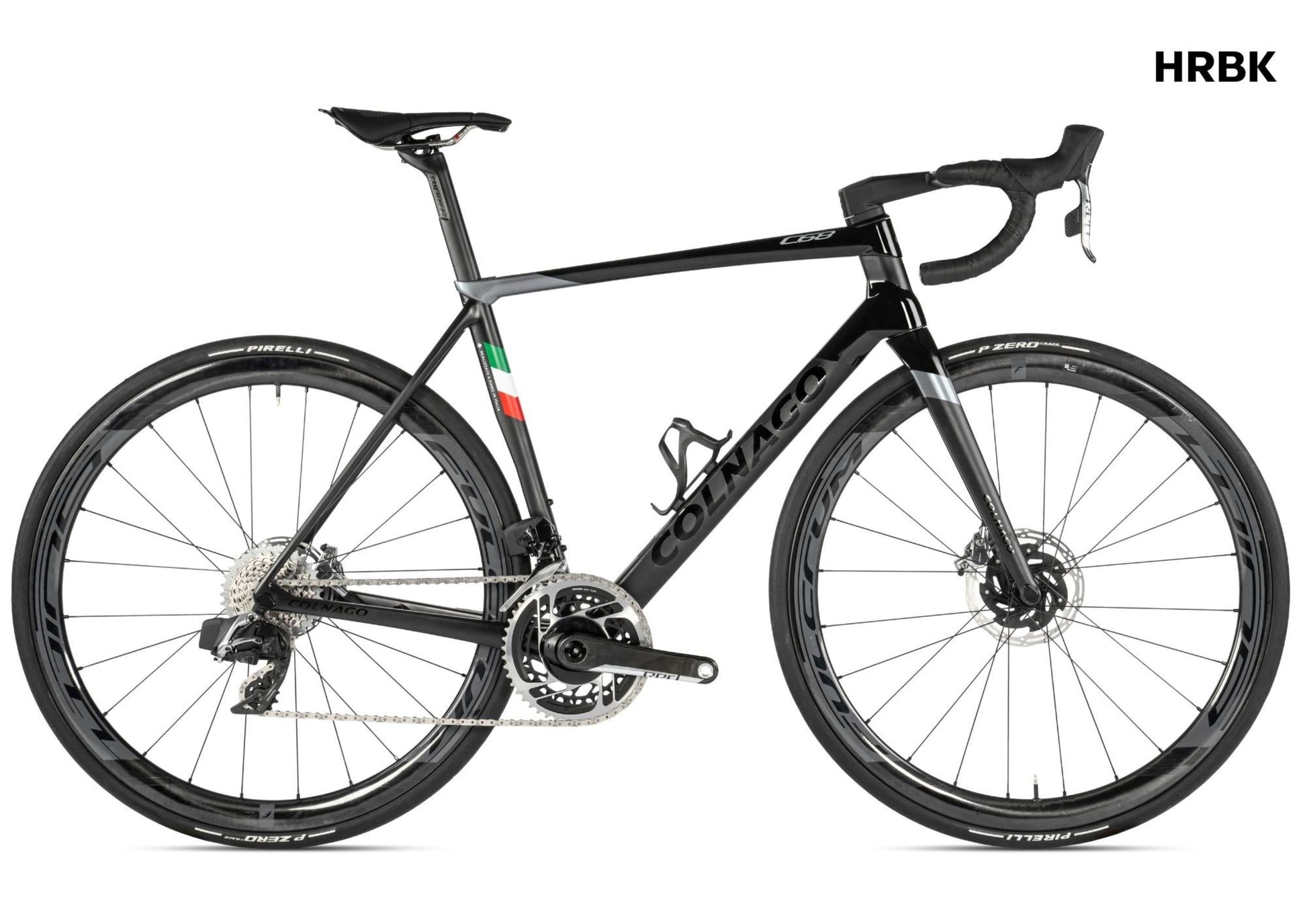

COLNAGO C68 ROAD DISC ROAD FRAMESET
Precise and elegant, with an impeccable ride quality, the C68 Road Disc Frameset is the essence of road cycling, handmade in Italy for riders seeking unparalleled attention to detail. A step above the acclaimed C64 model, the C68 is lighter, stiffer and more precise, all without detracting from its traditional roots. The fork sees design improvements, further lowering weight and increasing rigidity, and the move to a T47 bottom bracket makes maintenance all the easier.
This frame comes complete with a CeramicSpeed SLT headset, guaranteed for life against corrosion. Less race-focused than its model V series counterparts, this C series frame offers a refined, high-quality ride feel, setting it apart from other models and making it the perfect basis for your next custom build.
HIGHLIGHTS
- The all-new frame design is lighter and stiffer than the C64
- T47 bottom bracket for rigidity and ease of maintenance
- Improved stiffness allows for enhanced handling precision
- A removable front derailleur mount allows for cleaner integration with 1x drivetrain setups
- The fork sees enhanced stiffness and reduced weight
- CeramicSpeed SLT (Solid Lubrication Technology) headset with a lifetime guarantee
- Manufacturer claimed weight of 930 (+/- 10) grams (size 51cm, unpainted, no metal parts)
TECHNICAL SPECIFICATION
Frame | Colnago C68 Carbon Disc, T47 spec BB , thru-axle 12x142mm |
Fork | Colnago C68 Full Carbon Disc, thru-axle 12x100mm |
Headset | CeramicSpeed SLT |
Bottom Bracket | T47 Threadfit shell |
Seatpost | Colnago C68 Carbon |
COLNAGO C68 ROAD DISC ROAD FRAMESET 2022 SIZING
Size | 42 | 45.5 | 48.5 | 51 | 53 | 55 | 57 |
Seat Tube (ctr-top) | 420 | 455 | 485 | 510 | 530 | 550 | 570 |
Seat Tube (ctr-ctr) | - | - | - | - | - | - | - |
Effective Top Tube | 504 | 517 | 535 | 550 | 567 | 586 | 599 |
Actual Top Tube | - | - | - | - | - | - | - |
Seat Angle (°) | 75.5° | 75.0° | 74.5° | 74.0° | 73.50° | 73.0° | 73.0° |
Head Tube Angle (°) | 70.6° | 71.0° | 71.5° | 71.8° | 72.5° | 72.9° | 73.1° |
Head Tube Length | 103 | 114 | 130 | 148 | 164 | 181 | 200 |
Fork Rake | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
Chainstay Length | 408 | 408 | 408 | 410 | 414 | 414 | 414 |
Wheelbase | - | - | - | - | - | - | - |
Stack | 510 | 522 | 539 | 557 | 575 | 593 | 612 |
Reach | 370 | 375 | 383 | 388 | 395 | 403 | 410 |
All measurements in mm unless otherwise stated.
